Four Way Shuttle AS/RS
——
Cold Storage
Automatic Storage and Retrieval System
Operating temperature: -30°C to 0°C
● Intelligent Control,Four Direction Moving,Layer Changing On Vertical
Four Way Smart Shuttle High Density Pallet Storage ASRS Shuttle Racking System is an upgraded version of an intelligent compact storage system for a stacker crane operated ASRS warehouse system. It is controlled by computer system, and the goods can be placed in the designated location by means of horizontal and vertical movement of a 4 way shuttle device. The elevator can move goods to higher level locations and change levels of 4 way-shuttle. The logistics docking between internal and external is carried out through a conveying system.
This system can realize the flexibility of storage and efficiency. The storage depth can be freely divided according to the needs, the storage efficiency can be changed by the number of equipment, and the amount of fixed equipment can also achieve flexible changes in efficiency with the change of scheduling. It greatly facilitates the flexible storage needs of different customers for warehousing models. Compared with other automated storage systems, this system also has the advantages of better security, lower comprehensive cost, larger storage capacity, and higher efficiency. Especially suitable for food, cold chain, medicine, chemical and other manufacturing or logistic industry.
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Product Advantage
——
● Reduce warehouse land by more than 50% and reduce labor costs by more than 30%
As the core equipment of the intelligent high-dense storage system, the four-way shuttle is mainly composed of frame structure assembly, electrical control system, power supply system, driving system, lifting system, sensor system etc. It has two sets of driving system and two sets of lifting system. The driving systems are in charge of X and Y direction movements. One lifting system is in charge of the lifting of cargos, the other is in charge of the switch of main and secondary rails. Z direction movement can be realized by level changing through a customized elevator, which can realize the access of the three-dimensional space of the warehouse.
The four-way shuttle system is a solution that integrates the characteristics of high-density and multi-depth shuttle racks and intelligent storage of automated three-dimensional warehouses. The solution is more flexible, and the efficiency of inbound and outbound storage can be improved according to the development needs of users. It can be improved only by adding four-way shuttles and elevators. It can also provide a larger storage solution according to the complexity of the goods specifications to achieve the combination mode of single-deep , double-deep and multiple deep positions, real-time information, real-time monitoring, WCS dispatching shuttles operations, real-time monitoring of shuttles coordinate, speed, electric quantity and other conditions, so that your storage can be as you wish!
● Shelf height can reach 10 meters or higher, reducing land occupation area.
● Reduce warehouse land by more than 50% and reduce labor costs by more than 30%.
● Seamless data integration with ERP system and real-time intelligent production scheduling.
● Light weight, energy saving and high efficiency.
● Flexible storage layout combination method, can realize non-contiguous floors and multi-area interworking layout.
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Structural Principles
——
The four-way shuttle intelligent storage system is mainly composed of six parts:
1) Shuttle rack structure, 2) Four-way shuttle device, 3) Vertical elevator, 4) Conveyor system,
5) Warehouse management system(WMS) 6) Warehouse control system(WCS).
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China

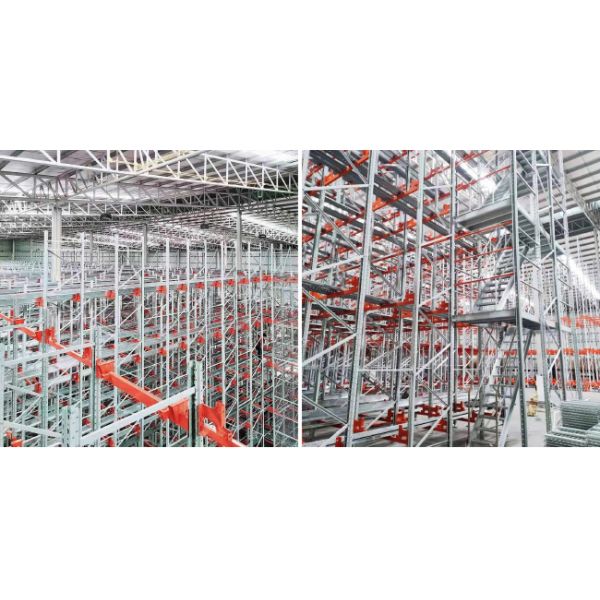

Construction Site
—
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Accessories
——
Four Way Radio Shuttle Car
Steel Pallet
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Product Packaging And Transportation
——
Four-Way Shuttle Pallet ASRS · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
